Contract Straight Chrome/White TRV

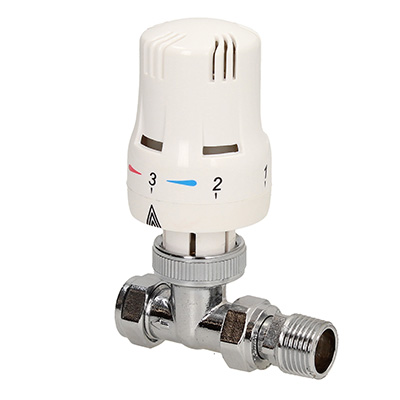

Valve Image

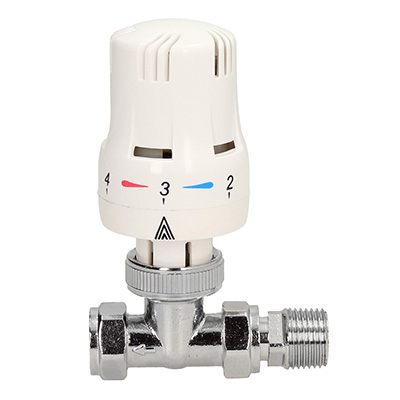

Valve Image

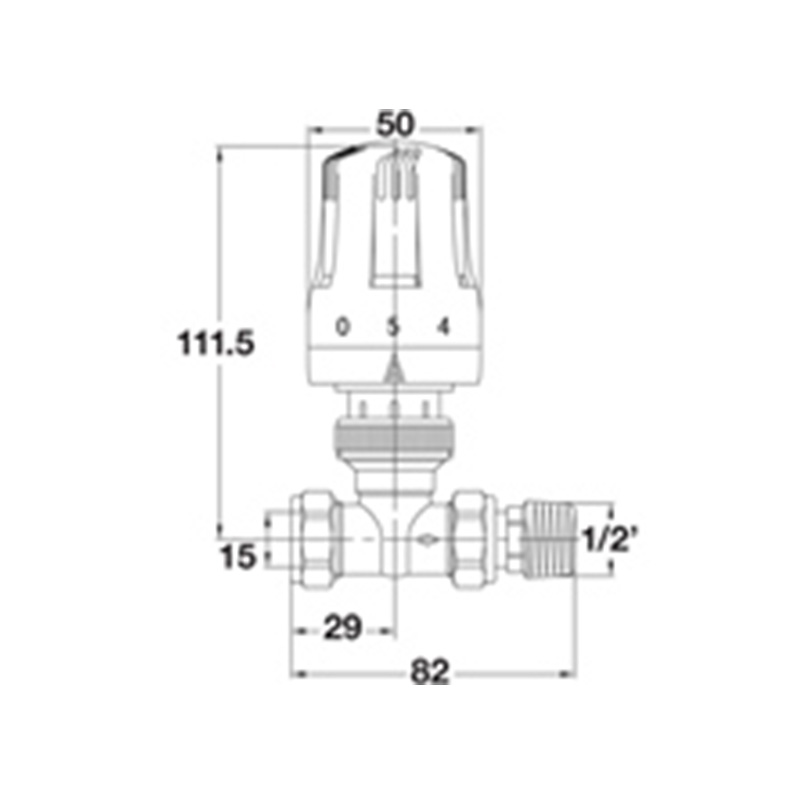

Valve Technical Image

Description

This Evolve 15mm straight thermostatic radiator valve (TRV) from the basic Contract range can be used to regulate the fluid flow to the radiator to keep the ambient temperature of the room constant at the set value preventing unwanted temperature rises and achieving considerable energy savings.

Please note: The TRV is only suitable for use as a reverse flow valve when the system differential pressure across the valve does not exceed 0.25 bar.

Materials

  • Valve body made of chrome-plated CW614N brass
  • Valve insert made of CW614N brass with EPDM seals
  • Tailpiece and union-nut made of chrome-plated brass

Specification

Manufacturer BiWorld Controls
Model Number EV-C15S
Max. working pressure 10 bar
Max. pressure differential 1 bar
Max. water temperature 100C
Max. ambient temperature 50C
Temperature adjustment range 0C-28C
Frost setting 7C
Manual Click here to download
